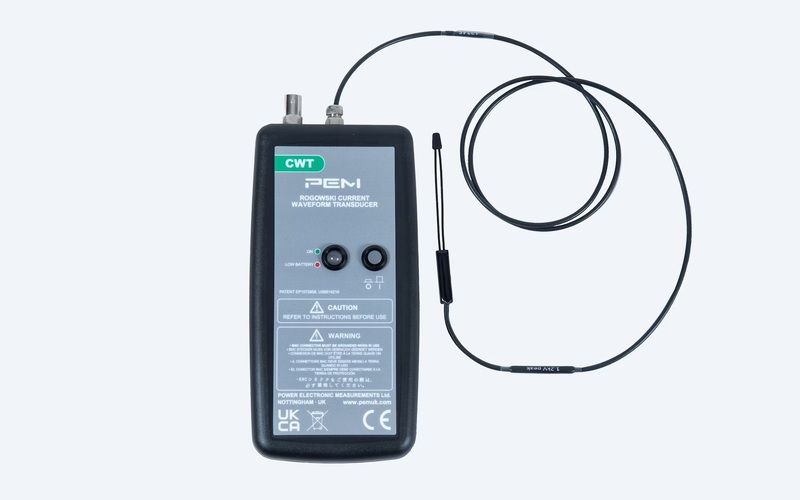

• The CWTUM-F (1.3mm thickness) is an extension of the original CWT Ultra-mini range from PEM.

• Novel ‘forked’ construction with a coil length of 55mm

• Wide operating temperature -40°C to +125°C

• Current ratings from 60A pk to 12kA pk

• Coil insulation 1.2kV pk

• Peak di/dt capability up to 100kA/μs

• Thin version 1.3mm cross section diameter
  HF (-3dB) 20MHz

• A shielded ‘HF’ version 1.7mm cross section diameter/ Excellent voltage immunity / HF (-3dB) 30MHz
